Shamol energiyasini ishlab chiqarish uchun sim arqon
Shamol energiyasini ishlab chiqarish uchun uzun po'lat simli arqon - bu yuqori samarali mahsulot bo'lib, fan minorasi -- ish sharoitida bepul ko'taruvchi, alpinist yoki yuk ko'targichdagi xavfsizlikni ko'tarish uskunalari uchun maxsus ishlab chiqilgan va ishlab chiqarilgan. Mahsulot xususiyatlari asosan quyidagicha ko'rsatilgan:
1, Yuqori sindirish kuchi, uskunaning yuqori xavfsizlik omili;
2, yuqori charchoq muddati, turdagi sinov ostida 3000 martadan ortiq charchoq egilishi;
3, yuqori korroziyaga chidamlilik, neytral tuz purkagich sinoviga (NSS) 240-720 soat qizil zangsiz javob berishi mumkin;
4, barqaror tuzilish, ekstruziyaga chidamlilik, uzoq xizmat muddati;
5, Ko'p qatlamli tuzilish mahsulotlari mukammal aylanishga qarshi ishlashga ega.

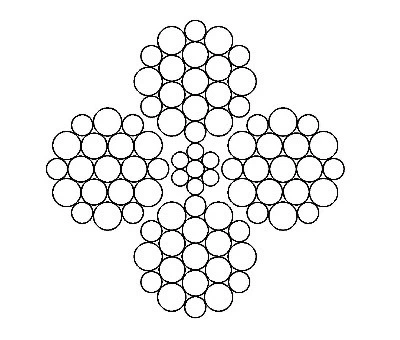

4×19W-WSC 4×31WS-FC
|
Diametri (mm) |
Malumot og'irligi kg/100m |
Minimal uzilish yuki KN |
Minimal uzilish yuki/ kN |
||
|
1770 MPa |
1960 MPa |
2160 MPa |
|||
|
5 |
10.3 |
15.9 |
17.6 |
19.4 |
20.8 |
|
6 |
14.8 |
22.9 |
25.4 |
28.0 |
30.0 |
|
7 |
20.1 |
31.2 |
34.6 |
38.1 |
40.9 |
|
8 |
26.2 |
40.8 |
45.2 |
49.8 |
53.4 |
|
8.3 |
28.8 |
43.9 |
48.6 |
53.6 |
57.4 |
|
9 |
33.2 |
51.6 |
57.2 |
63.0 |
67.5 |
|
9.1 |
34.6 |
52.8 |
58.4 |
64.4 |
69.0 |
|
10 |
41.0 |
63.7 |
70.6 |
77.8 |
83.4 |
|
10.2 |
43.5 |
66.3 |
73.4 |
80.9 |
86.7 |
|
11 |
49.6 |
77.1 |
85.4 |
94.1 |
101 |
|
12 |
59.0 |
91.8 |
102 |
112 |
120 |
|
13 |
69.3 |
108 |
119 |
131 |
141 |
|
14 |
80.4 |
125 |
138 |
152 |
163 |
|
15 |
92.3 |
143 |
159 |
175 |
188 |
Eslatma: Stressni engillashtiradigan vosita sifatida foydalanish mumkin emas!

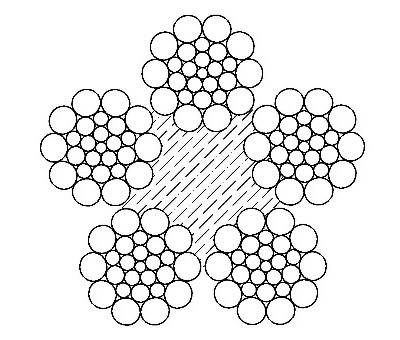

5×19S-FC
5×26WS-FC
|
Diametri (mm) |
Malumot og'irligi kg/100m |
Minimal uzilish yuki KN |
Minimal uzilish yuki/ kN |
||
|
1770 MPa |
1960 MPa |
2160 MPa |
|||
|
5 |
9.5 |
14.6 |
16.2 |
17.8 |
18.9 |
|
6 |
13.7 |
21.0 |
23.3 |
25.7 |
27.2 |
|
7 |
18.6 |
28.6 |
31.7 |
34.9 |
37.0 |
|
8 |
24.3 |
37.4 |
41.4 |
45.6 |
48.4 |
|
8.3 |
26.2 |
40.3 |
44.6 |
49.1 |
52.1 |
|
9 |
30.8 |
47.3 |
52.4 |
57.7 |
61.2 |
|
10 |
38.0 |
58.4 |
64.7 |
71.3 |
75.6 |
|
11 |
46.0 |
70.7 |
78.3 |
86.2 |
91.5 |
|
12 |
54.7 |
84.1 |
93.1 |
103 |
109 |
|
13 |
64.2 |
98.7 |
109 |
120 |
128 |
|
14 |
74.5 |
115 |
127 |
140 |
148 |
|
15 |
85.5 |
131 |
146 |
160 |
170 |
Eslatma: Stressni engillashtiradigan vosita sifatida foydalanish mumkin emas!

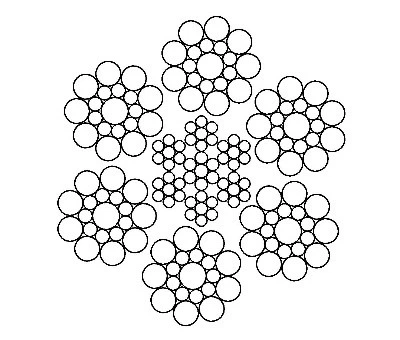

6×19W-WSC/IWRC/FC, 6×19S-WSC/IWRC/FC
|
Diametri (mm) |
Malumot og'irligi kg/100m |
Minimal uzilish yuki KN |
Minimal uzilish yuki/ kN |
|||||||
|
1770 MPa |
1960 MPa |
2160 MPa |
||||||||
|
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
|
|
5 |
9.5 |
10.5 |
14.60 |
15.8 |
16.2 |
18.4 |
17.8 |
19.2 |
18.1 |
21.6 |
|
6 |
13.7 |
15.0 |
21.03 |
22.7 |
23.3 |
26.5 |
25.7 |
27.7 |
26.0 |
31.1 |
|
7 |
18.6 |
20.5 |
28.62 |
30.9 |
31.7 |
36.0 |
34.9 |
37.7 |
35.5 |
42.3 |
|
8 |
24.3 |
26.8 |
37.4 |
40.3 |
41.4 |
47.0 |
45.6 |
49.2 |
46.3 |
55.3 |
|
8.3 |
26.2 |
28.8 |
40.2 |
43.4 |
44.6 |
50.6 |
49.1 |
53.0 |
49.8 |
59.5 |
|
9 |
30.8 |
33.9 |
47.3 |
51.0 |
52.4 |
59.5 |
57.7 |
62.3 |
58.6 |
70.0 |
|
9.5 |
34.3 |
37.8 |
52.7 |
56.8 |
58.4 |
66.3 |
64.3 |
69.4 |
65.3 |
78.0 |
|
10 |
38.0 |
41.8 |
58.41 |
63.0 |
64.7 |
73.5 |
71.3 |
76.9 |
72.4 |
86.4 |
|
11 |
46.0 |
50.6 |
70.68 |
76.2 |
78.3 |
88.9 |
86.2 |
93.0 |
87.6 |
105 |
|
12 |
54.7 |
60.2 |
84.11 |
90.7 |
93.1 |
106 |
103 |
111 |
104 |
124 |
|
13 |
64.2 |
70.6 |
98.71 |
106 |
109 |
124 |
120 |
130 |
122 |
146 |
|
14 |
74.5 |
81.9 |
114.5 |
124 |
127 |
144 |
140 |
151 |
142 |
169 |
|
15 |
85.5 |
94.1 |
131.4 |
142 |
146 |
165 |
160 |
173 |
163 |
194 |
Eslatma: Stressni engillashtiradigan vosita sifatida foydalanish mumkin emas!
5×K19S-FC
5×K26WS-FC
|
Diametri (mm) |
Malumot og'irligi kg/100m |
Minimal uzilish yuki KN |
Minimal uzilish yuki/ kN |
||
|
1770 MPa |
1960 MPa |
2160 MPa |
|||
|
5 |
10.6 |
16.5 |
18.3 |
20.1 |
21.3 |
|
6 |
15.3 |
23.8 |
26.3 |
29.0 |
30.7 |
|
7 |
20.8 |
32.4 |
35.8 |
39.5 |
41.8 |
|
8 |
27.2 |
42.3 |
46.8 |
51.6 |
54.5 |
|
8.2 |
29.3 |
45.5 |
50.4 |
55.5 |
59.5 |
|
9 |
34.4 |
53.5 |
59.2 |
65.3 |
69.1 |
|
10 |
42.5 |
66.0 |
73.1 |
80.6 |
85.3 |
|
11 |
51.4 |
79.9 |
88.5 |
97.5 |
103 |
|
12 |
61.2 |
95.1 |
105 |
116 |
123 |
|
13 |
71.8 |
112 |
124 |
136 |
144 |
|
14 |
83.3 |
129 |
143 |
158 |
167 |
|
15 |
95.6 |
149 |
164 |
181 |
192 |
Eslatma: Stressni engillashtiradigan vosita sifatida foydalanish mumkin emas!
6×K19S-WSC/IWRC
|
Diametri (mm) |
Malumot og'irligi kg/100m |
Minimal uzilish yuki KN |
Minimal uzilish yuki/ kN |
||
|
1770 MPa |
1960 MPa |
2160 MPa |
|||
|
5 |
11.6 |
18.4 |
20.3 |
22.4 |
23.0 |
|
6 |
16.7 |
26.4 |
29.3 |
32.3 |
33.0 |
|
7 |
22.8 |
36.0 |
39.9 |
43.9 |
45.0 |
|
8 |
29.8 |
47.0 |
52.1 |
57.4 |
58.8 |
|
9 |
37.7 |
59.5 |
65.9 |
72.6 |
74.4 |
|
10 |
46.5 |
73.5 |
81.3 |
89.6 |
91.8 |
|
11 |
56.3 |
88.9 |
98.4 |
108 |
111 |
|
12 |
67.0 |
106 |
117 |
129 |
132 |
|
13 |
78.6 |
124 |
137 |
151 |
155 |
|
14 |
91.1 |
144 |
159 |
176 |
180 |
|
15 |
105 |
165 |
183 |
202 |
207 |
Eslatma: Stressni engillashtiradigan vosita sifatida foydalanish mumkin emas!
18×7-WSC/FC
|
Diametri (mm) |
Malumot og'irligi kg/100m |
Minimal uzilish yuki KN |
Minimal uzilish yuki/ kN |
|||||||
|
1770 MPa |
1960 MPa |
2160 MPa |
||||||||
|
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
|
|
4 |
6.2 |
6.9 |
8.8 |
9.3 |
9.7 |
10.3 |
10.7 |
11.3 |
11.4 |
12.1 |
|
5 |
9.8 |
10.8 |
13.7 |
14.5 |
15.2 |
16.1 |
16.7 |
17.7 |
17.8 |
18.9 |
|
6 |
14.0 |
15.5 |
19.8 |
20.9 |
21.9 |
23.1 |
24.1 |
25.5 |
25.7 |
27.2 |
|
7 |
19.1 |
21.1 |
26.9 |
28.4 |
29.8 |
31.5 |
32.8 |
34.7 |
34.9 |
37.0 |
|
8 |
25.0 |
27.5 |
35.1 |
37.2 |
38.9 |
41.1 |
42.9 |
45.3 |
45.6 |
48.4 |
|
9 |
31.6 |
34.8 |
44.4 |
47.0 |
49.2 |
52.1 |
54.2 |
57.4 |
57.7 |
61.2 |
|
10 |
39.0 |
43.0 |
54.9 |
58.1 |
60.8 |
64.3 |
67.0 |
70.8 |
71.3 |
75.6 |
18×K7-WSC/FC
|
Diametri (mm) |
Malumot og'irligi kg/100m |
Minimal uzilish yuki KN |
Minimal uzilish yuki/ kN |
|||||||
|
1770 MPa |
1960 MPa |
2160 MPa |
||||||||
|
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
Elyaf yadrosi |
Chelik yadro |
|
|
4 |
6.8 |
7.4 |
9.9 |
10.5 |
11.0 |
11.6 |
12.1 |
12.8 |
12.8 |
13.8 |
|
5 |
10.7 |
11.5 |
15.5 |
16.4 |
17.2 |
18.1 |
18.9 |
20.0 |
20.0 |
21.6 |
|
6 |
15.4 |
16.6 |
22.3 |
23.6 |
24.7 |
26.1 |
27.2 |
28.8 |
28.8 |
31.1 |
|
7 |
20.9 |
22.5 |
30.4 |
32.1 |
33.6 |
35.5 |
37.0 |
39.2 |
39.2 |
42.3 |
|
8 |
27.3 |
29.4 |
39.6 |
41.9 |
43.9 |
46.4 |
48.4 |
51.1 |
51.1 |
55.3 |
|
9 |
34.6 |
37.3 |
50.2 |
53.0 |
55.6 |
58.7 |
61.2 |
64.7 |
64.7 |
70.0 |
|
10 |
42.7 |
46.0 |
62.0 |
65.5 |
68.6 |
72.5 |
75.6 |
79.9 |
79.9 |
86.4 |
